Moving a suppressor between hosts has never been easier with the RRD-360HD-28FD-KM Muzzle Device!
The RRD-360HD-28FD-KM Muzzle Device is engineered to enhance the performance of MP5 and MP5K-pattern firearms while offering exceptional compatibility and versatility. Designed with KeyMo and KeyMicro suppressor adapters in mind, this innovative device not only streamlines suppressor use but also enhances your firearm’s handling.
Optimized for MP5 and MP5K Firearms
Specifically designed for MP5 and MP5K-pattern firearms, the RRD-360HD-28FD-KM delivers unmatched functionality by venting gases 360 degrees away from the muzzle. This reduces recoil, flash, and concussion, allowing you to maintain better control and focus on the action. The device sleeves the barrel approximately 1" back from the muzzle when used with KeyMo or KeyMicro adapters, ensuring the shortest possible overall length and a sleek appearance.
In addition to MP5 and MP5K platforms, this muzzle device is compatible with a wide range of MP5 clones and variants from manufacturers like MKE, Century Arms, Zenith, H&K, PTR, and more.
Unmatched Compatibility
The RRD-360HD-28FD-KM works with any firearm that features a combination 3-lug and 1/2-28 threaded barrel. For firearms with extended barrels under 0.7” in diameter, this device provides seamless integration. Compatible platforms include:
- AR-15: Must have a "government profile barrel" or barrel with a diameter behind the threads of <0.7".
- SCAR-16: Requires 1"+ from gas adjustment to the barrel end.
- ACR: Requires 1"+ from gas adjustment to the barrel end.
- FS2000: Must be threaded 1/2-28 with 1"+ from gas adjustment to the barrel end.
- AUG: Must be threaded 1/2-28.
- Scorpion EVO3: Compatible with the Micro EVO3 S2 "Micro" but must not have 18mm threads behind 1/2-28.
- Galil ACE: Compatible with pistols and rifles; measure to ensure fitment.
- IWI Tavor
Always measure your firearm’s barrel to confirm compatibility before purchase.
Why Choose the RRD-360HD-28FD-KM?
- Seamless Suppressor Integration: Designed to work with KeyMo and KeyMicro suppressor adapters, the RRD-360HD-28FD-KM eliminates the need to switch between 3-lug and KeyMo/KeyMicro mounting systems. Popular suppressor examples include the Dead Air Wolfman. Additionally, the device is fully compatible with JMAC’s Blast Diversion Shields (BDS-20 for KeyMicro and BDS-37 for KeyMo).
- Enhanced Suppressor Protection: The 360HD design features three additional internal blast baffles, offering extra protection for your suppressor against high-pressure gases. This ensures longer suppressor life and optimal performance.
- No Timing Required: The device’s 360-degree porting eliminates the need for timing or shims. Simply tighten it against the barrel face with a 3/4" wrench or socket, torquing it to 38-40 ft/lbs for a secure and proper fit.

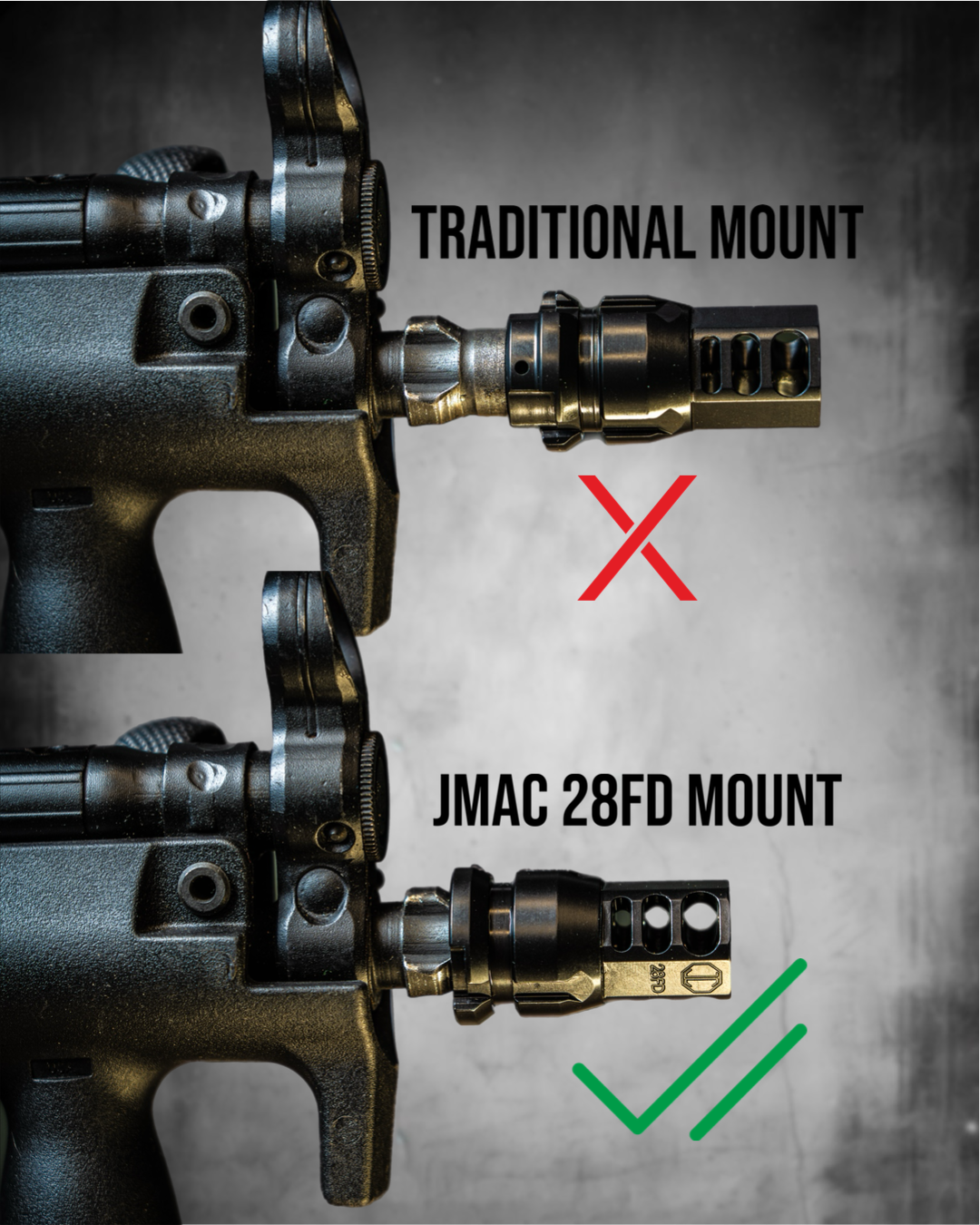

- Improved Aesthetics and Handling: By sleeving the barrel and partially covering the tri-lugs, the RRD-360HD-28FD-KM reduces the overall length of your firearm and enhances its balance. This creates a cleaner, more integrated look that complements the firearm’s design.
- Durable Construction: Precision-machined from 17-4ph stainless steel and finished with black nitride, this muzzle device is built to handle the excess pressures of short-barreled firearms while maintaining a lightweight, durable profile.
Specifications:
- Threading: 1/2-28
- Length: 2.050" (adds approximately 0.85" to the overall length)
- Barrel Sleeving: 0.98"
- Bore: 10mm
- Compatibility: KeyMount and KeyMicro suppressor adapters
- Material: 17-4ph Stainless Steel
- Finish: Black Nitride
Installation Recommendations:
Installing the RRD-360HD-28FD-KM is straightforward and requires no timing. Follow these steps for proper installation:
- Ensure your barrel is clean and free of debris.
- Using a 3/4" wrench or socket, tighten the device against the barrel face.
- Torque the device to 38-40 ft/lbs for a secure fit.
- If timing is desired, use JMAC’s optional face shims or ensure your barrel is properly faced.
Note: JMAC Customs recommends professional installation and alignment checks to prevent damage to your firearm or suppressor. Incorrect installation could result in serious harm. Always consult a certified professional.
Order Yours Today
The RRD-360HD-28FD-KM Muzzle Device is a licensed product through Dead Air Silencers and is available now. With its revolutionary design, seamless suppressor compatibility, and enhanced performance for short-barreled firearms, this is a must-have upgrade for MP5, MP5K, and other compatible platforms.
Sign up for "Notify Me" to secure your device before it sells out! Don’t miss this opportunity to enhance your firearm’s functionality and aesthetics.
Visual Highlights:
The RRD-360HD-28FD-KM Muzzle Device is more than just an accessory; it’s a game-changer for those looking to maximize performance, simplify suppressor use, and enhance their firearm’s appearance. Don’t wait—upgrade your setup today!
